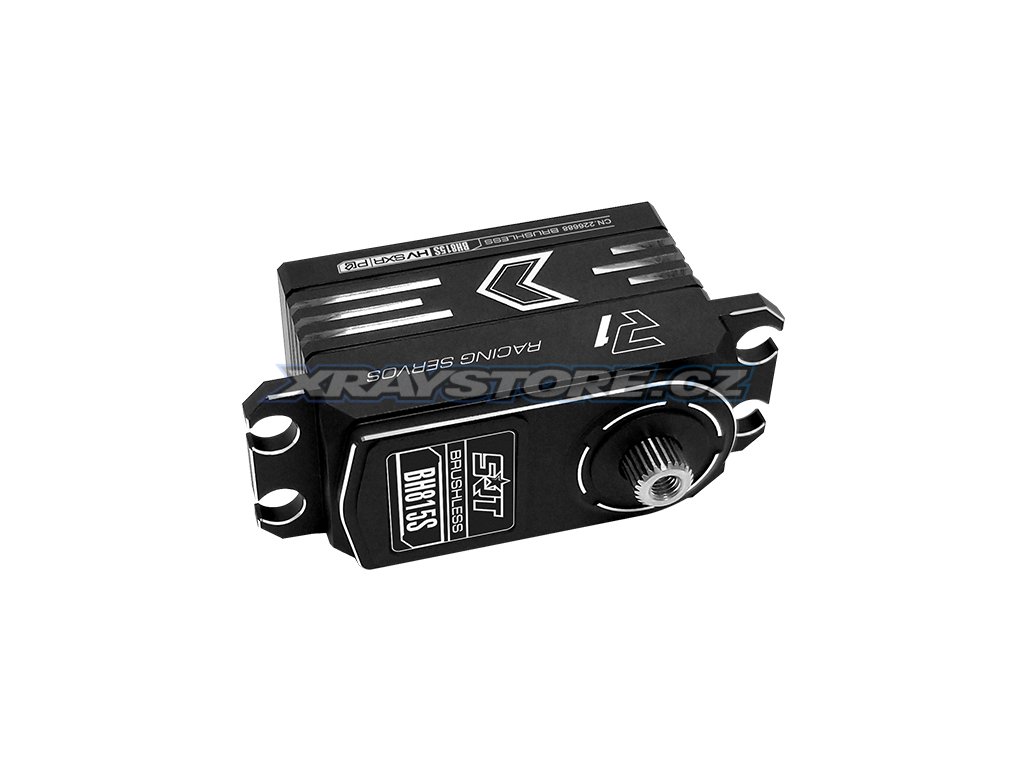

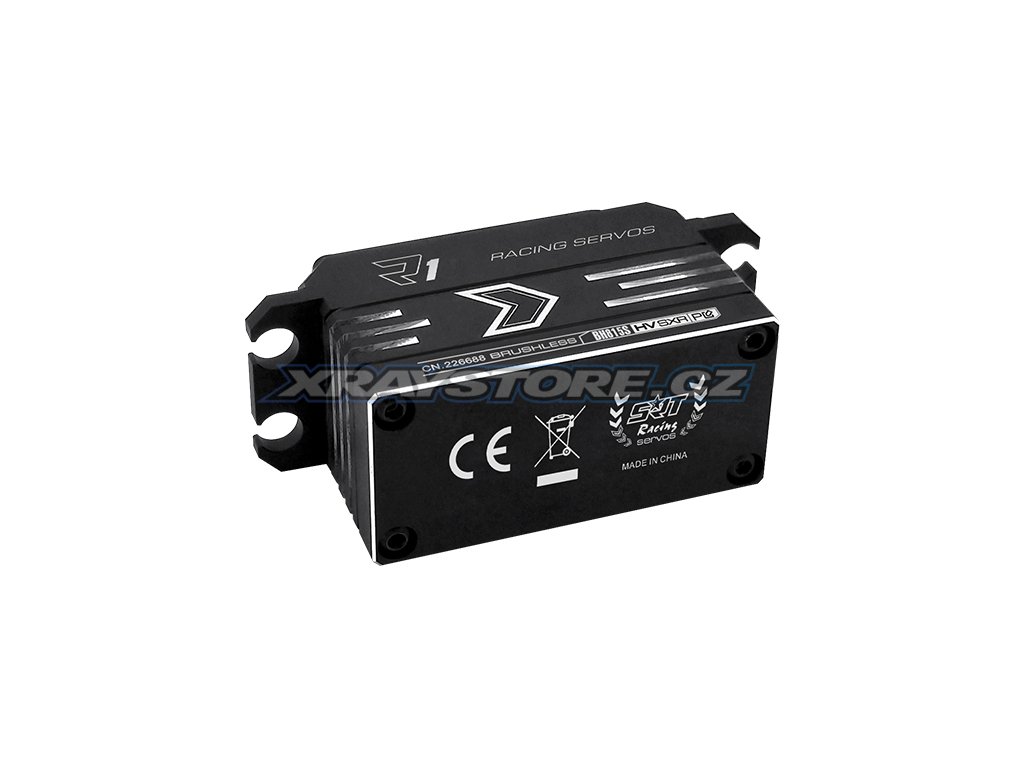

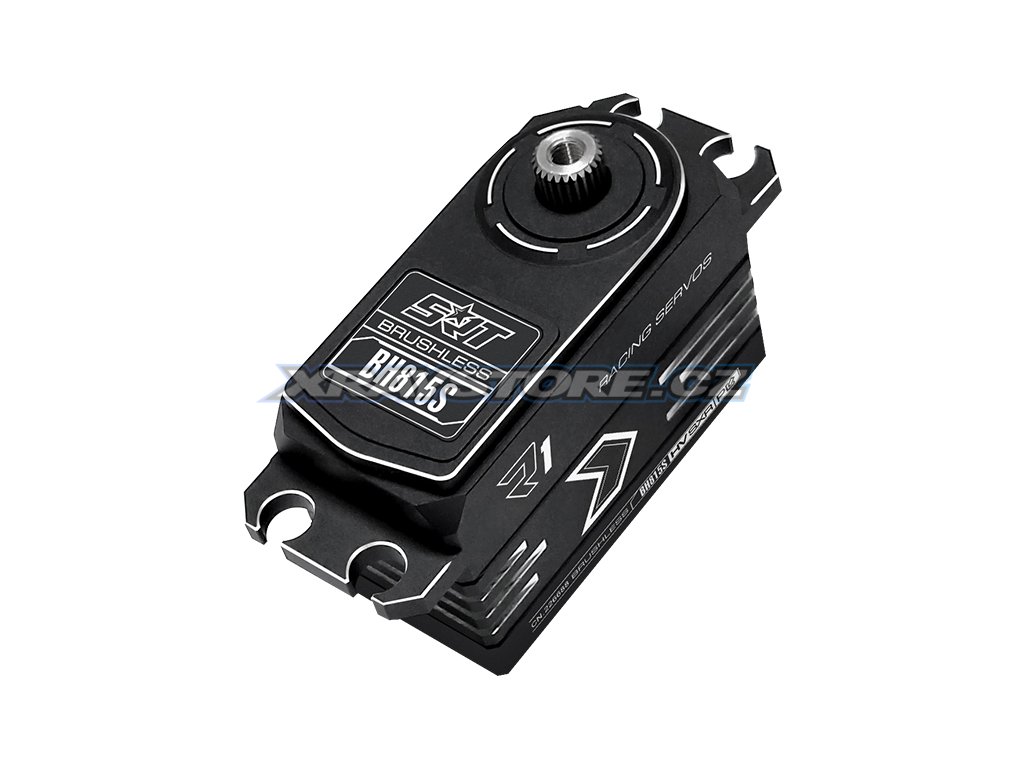

BH815S SSR HiVOLT BRUSHLESS Digital servo LOW PROFILE (15kg-0.05s/60°)

Product detailed description

SRT BH815S Low Profile (0.055s/13kg/7.4V) Brushless Servo

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.065 sec/60 degrees at no load
operating speed (7.4v): 0.055 sec/60 degrees at no load
operating speed (8.4v): 0.050 sec/60 degrees at no load
stall torque (6.0v): 10.0kg.cm (138.8 oz/in)
stall torque (7.4v): 13.0kg.cm (180.5 oz/in)
stall torque (8.4v): 15.0kg.cm (208.3 oz/in)
potentiometer drive: direct drive

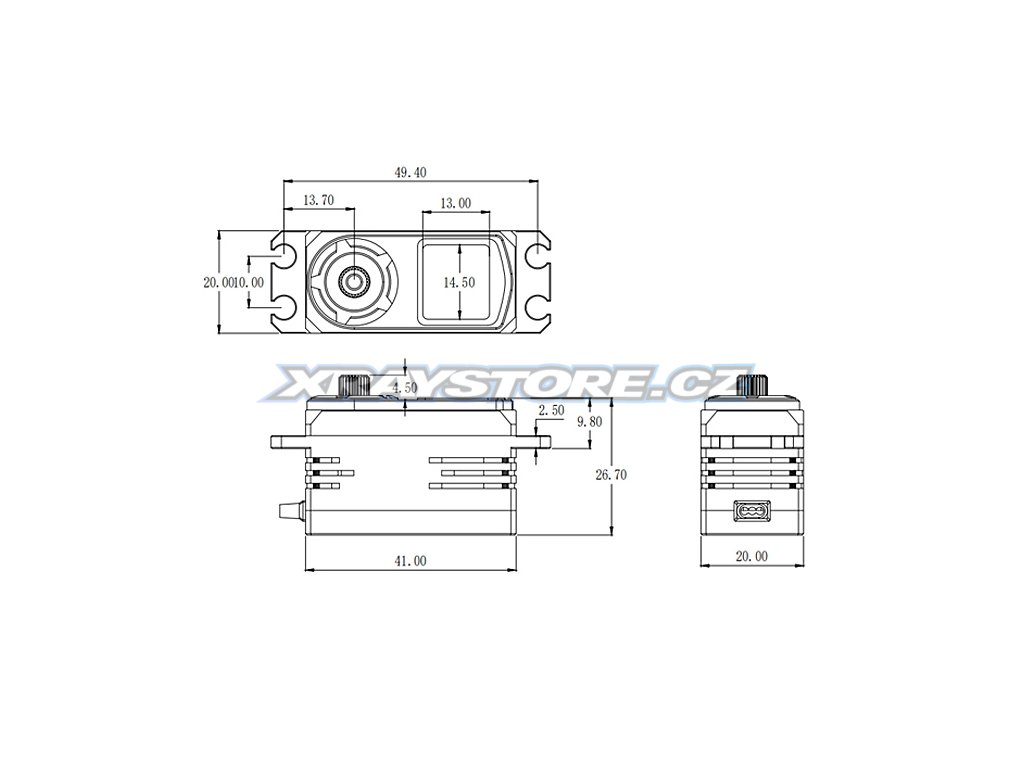

dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in
weight: 52.0g (1.83 oz)
connector wire length: jr 80 mm
