BH927S SSR HiVOLT BRUSHLESS Digital servo (27kg-0.07s/60°)

Product detailed description

SRT BH927S SSR (0.07s/27.0kg/8.4V) Brushless Servo

Application :
1/8 Electric/ Car    1/8 Nitro/ Car   1/8 2 4WD / Off-road
1/8 Off-road        1/8 / Off-road

PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium & Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.10 sec/60 degrees at no load
operating speed (7.4v): 0.075 sec/60 degrees at no load
operating speed (8.4v): 0.07 sec/60 degrees at no load
stall torque (6.0v): 21.0kg.cm (291.6 oz/in)
stall torque (7.4v): 23.0kg.cm (319.4 oz/in)
stall torque (8.4v): 27.0kg.cm (374.9 oz/in)
potentiometer drive: direct drive

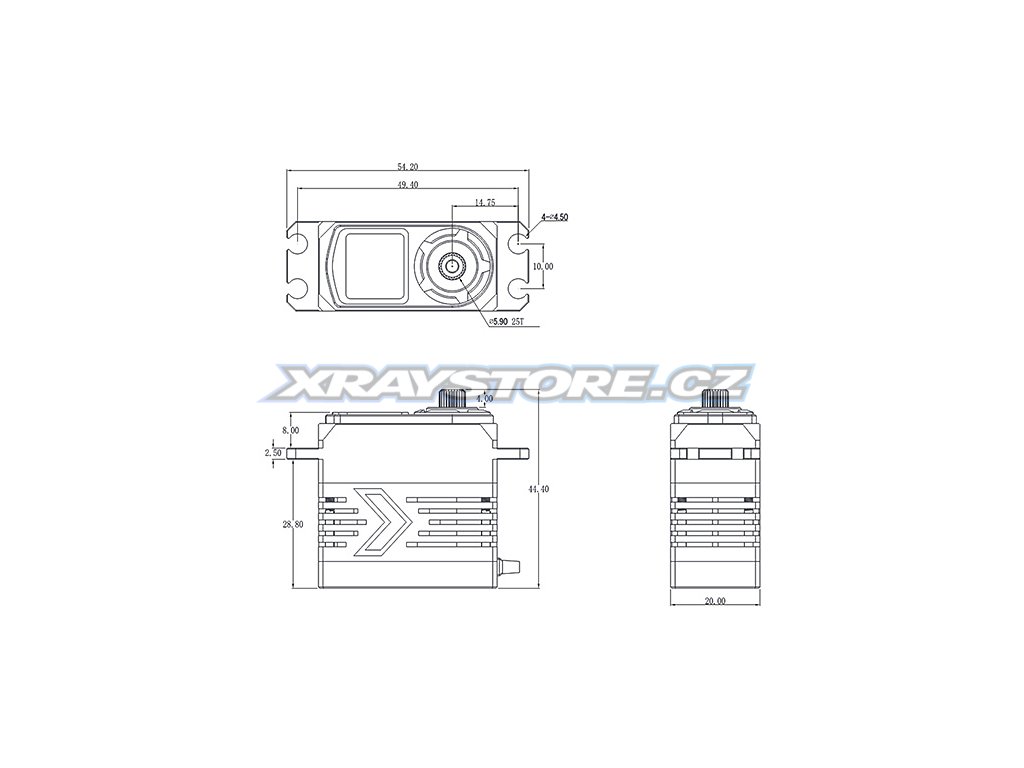

dimensions: 40x20x38.0 mm /1.57x0.79x1.49 in
weight: 70.0g (2.47 oz)
connector wire length: jr 300 mm
