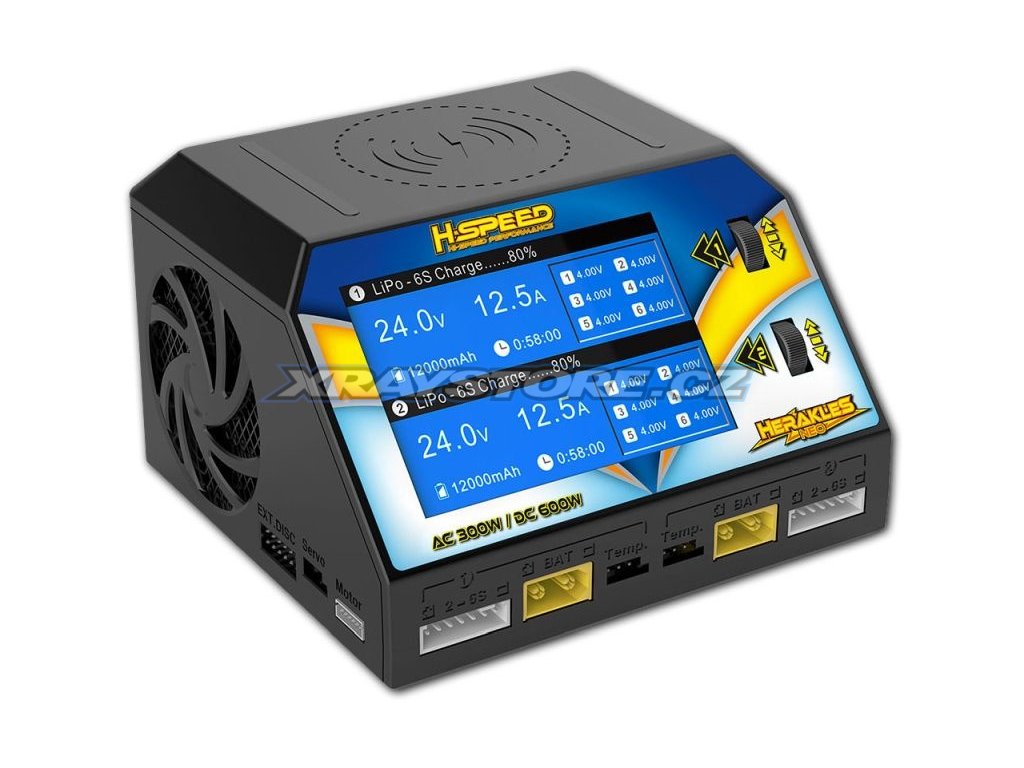

H-Speed Herakles NEO AC/DC Charger 300W

Detailní popis produktu

H-Speed Herakles NEO AC/DC Charger 300W - LiPO / LiHV / LiFe / Li-Ion (1-6S), NiMH / NiCD (1-16S)

The H-SPEED HERAKLES NEO is a powerful dual charger specially developed for the RC sector.
Its an exceptionally large 3.5? LCD display shows all important data and is easy to read. Scrolling through the menus is very easy using two adjusting wheels, one for each charging channel.
The two separate charging outputs allow you to charge two batteries of different types at the same time.
Additional features are the wireless charging function for cell phones and the test system for motors and servos.

Technical specifications
Input voltage: AC 100-120V or 220-240V, DC 9.0-32.0V
Output voltage: 0.1-30V
Charging current: 2x 0.1-16.0A
Discharge current CH1: 0.1-3.0A / 0.1-15.0A (external discharge mode)
Discharge current CH2: 0.1-3.0A
Charging power DC input: 2x 300W
Charging power AC input: Max.300W
Discharge power CH1: 8W / 200W (external discharge mode)
Discharge power CH2: 8W
Supported battery types: LiPo / LiHV / LiFe / Lilon (1-6S) / NiMH / NiCd (1-16S) / Lead Acid 2V-24V (1-12S)
Wireless charging power: Max.10W
Balance current: Max.1000mAh / cell
LCD screen type: 3.5 “480 × 320 LCD
Dimensions: 120x115x75mm
Weight: 810g

The motor test function checks the condition of the motor.
The servo test function checks the rotation and steering angle of the servo.
The external discharge function enables significantly reduced discharge times.
